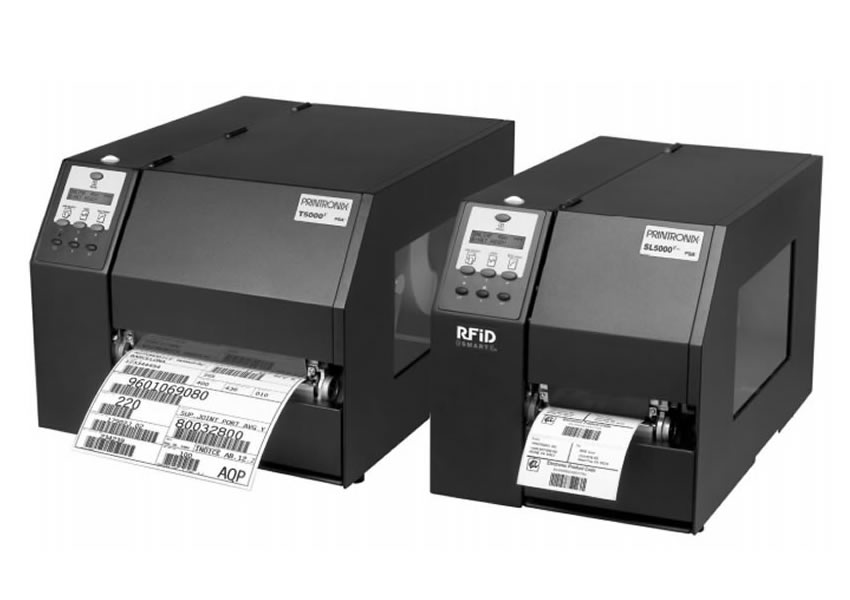

Printronix T5000r Thermal Printer



T5000r ThermaLine thermal bar code printer combines reliability, utility, power and flexibility for demanding environments and provides the open migration to RFID for future requirements.



Printronix T5000r Thermal Bar Code Printer Features

  • 166MHz 32-bit RISC processor for ultra-fast processing and throughput performance
  • 64MB SDRAM memory and 16MB Flash with font and image storage capability
  • 625m ribbon reduces downtime and supply cost
  • Easy side-load, cleaning and maintenance for less down time
  • ENERGY STAR qualified produc



See All Printronix Models



Full Brochure

Printronix T5000r Thermal Printer





Contact Us



Printronix T5000r Thermal Bar Code Printer Specifications
Technology type Thermal transfer or direct transfer
Memory DRAM 64MB standard Flash 16MB standard
Print Speed T5204r-4": 10 IPS @ 203 dpi (254mm/sec)
T5304r-4": 8 IPS @ 300 dpi (203mm/sec)
T5206r-6": 10 IPS @ 203 dpi (254mm/sec)
T5306r-6": 8 IPS @ 300 dpi (203mm/sec)
T5208r-8": 8 IPS @ 203 dpi (203mm/sec)
T5308r-8": 6 IPS @ 300 dpi (152mm/sec)
Resolution 203 dpi (8/dpmm), optional 305 dpi (12/dpmm)
Printable Width 4.1" max (104mm)
Media Types Paper, film or synthetic thermal transfer or direct thermal label, tag and ticket stock in roll or fanfold form
Media Capacity Roll Supply – 8" diameter on a 3" core (203mm diameter on a 76mm core)
Media Thickness 0.0023" to 0.010" (0.06mm to .254mm)
Media and Liner Width 1.0" to 5.15" (22mm to 127mm)
Media Thickness 0.0023" to 0.010" (0.06mm to .254mm)
Label Length (min/max) 0.25" to 99" (6mm to 2,514.6mm)
Thermal Transfer Ribbon Ribbon Width (min/max) – 1.55" to 5.0" (39.5mm to 127mm)
Maximum Ribbon Length 450M
Ribbon Core Diameter 1.0" (25.4 mm)
Ribbon Outer Diameter (max) 3.3" (85mm)
Media Sensing Transmissive (Gap, Notch, Hole), Reflective (Black Mark), Disable (Continuous Media)
Media Handling Modes Tear-Off Strip, Peel-Off, Cutter, Continuous
Media Handling Options Full Media Rewind: Rewinds full roll of labels
Peel w/ Liner Rewind: Peels labels and rewinds used liner from an 8" (203mm) label roll
Peel w/o Liner Rewind: Peels labels without rewinding used liner
Cutter: Cuts labels after printing specified number of labels
Message Display Indicators 32 character Off Line-On Line, Menu
Programming Languages Standard - Printronix Graphics Language (PGL)† Zebra Graphics Language (ZGL)† TEC Graphics Language (TGL) Intermec Graphics Language (IGL) Sato Graphics Language (STGL)† Datamax Graphics Language (DGL) IER Siège® Graphic Language (IEGL) Monarch Graphic Language (MGL) XML – Extensible Mark-up Language
Bar Code Symbologies Australian Post, Aztec, BC412, Code 128 (A,B,C), Code 35, Code 39, Code 93, Codabar (NW7), Datamatrix, EAN13 (JAN), EAN-8 (JAN), FIM, I-2/5, German I-2/5, IMB, ITF14, Matrix (2 of 5) Maxicode, MSI, PDF-417, Planet, Plessey, PostBar, Postnet, ROYAL BAR, RSS14, Telepen, UCC/EAN 128, UPC A, UPC E, UPC E0, UPC E1, UPC SHIP, UPS 11
Sensing Methods Transmissive, Reflective (Gap, Mark, Notch, Continuous Sensing Form)
Interfaces Standard Ethernet (supports PrintNet Enterprise and PXML) RS232 Serial IEEE 1284 (Centronics) USB 2.0

Wireless (802.11b/g, 54mbps)** 128bit WEP WPA-PSK / TKIP (Personal) WPA2-PSK / AES CCMP (Personal/Enterprise) PEAPv0 MSCHAv2, LEAP, TTLS (supports PrintNet Enterprise and PXML)
Fonts, Graphics Support, Windows Drivers Fonts - Monotype Imaging (Agfa Monotype) – Letter Gothic Bold, Courier Bold, CG Triumvirate Bold Condensed, OCR-A, OCR-B,CG Times, CG Triumvirate, CG Triumvirate Bold, (additional fonts available)

Character Set - Unicode with TrueType font support

Graphic Support - PCX and TIFF file formats

Windows Drivers - Microsoft Windows 2000/XP/2003 server
Electrical Line Input 90-264 VAC (48-62Hz) PFC
Regulatory Compliance: FCC-B, ICES-003, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 60950, cMETus, CE, BSMI, CCC, C-Tick, GOST-R, MIC, Argentina "S" mark
Environmental Operating Temperature: 5°C to 40°C
Operating Humidity: 0% to 90% non-condensing
Storage Temperature: -5°C to +60°C (-23°F to +104°F)
Storage Humidity: 5% to 90% non-condensing

Dimensions: 11.75" W x 18.75" D x 12.125" H (298mm W x 476mm D x 308mm H)

Printer Weight: 33lbs (15Kg) Shipping Weight: 41lbs (18.6Kg)
